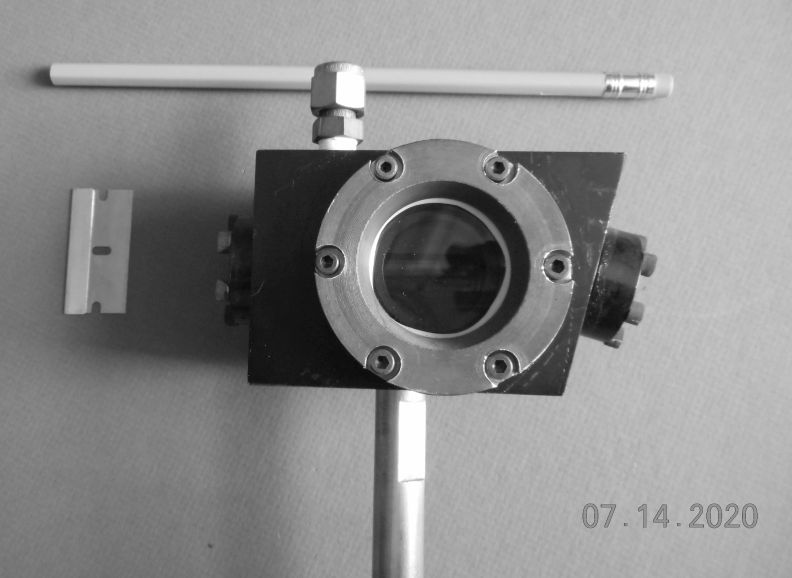

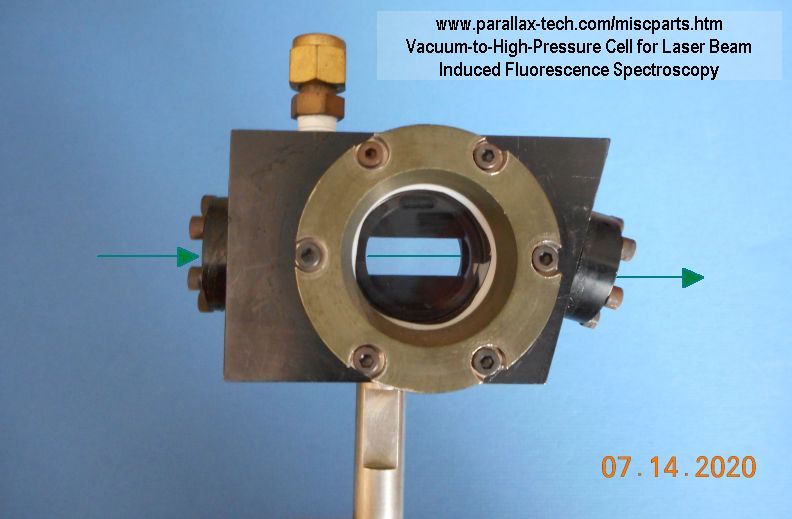

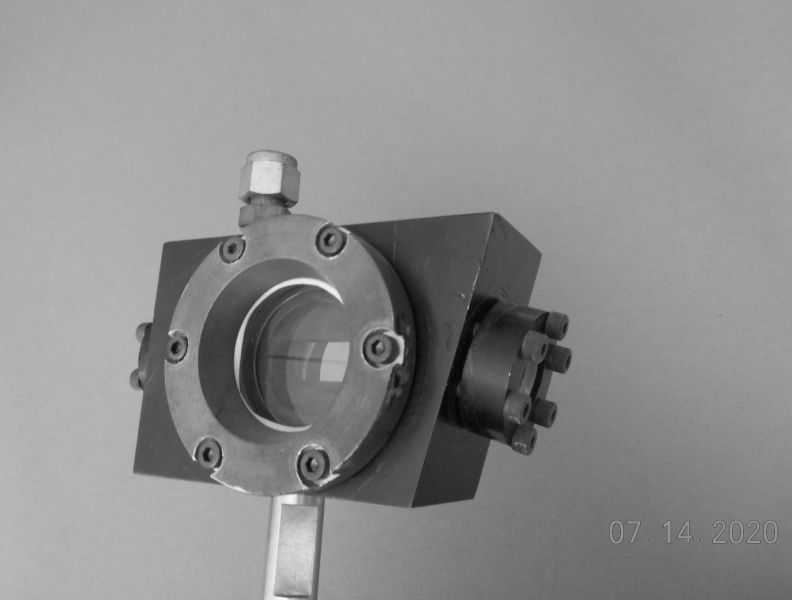

Vacuum-to-High-Pressure Cell for Laser Beam Induced Fluorescence Spectroscopy.

Read full descripiton at the bottom of this page.

Machined from solid T3 Aluminum and anodized. Very wide collection angle on both sides. Exit window at 20 degree slope to minimize back reflection. BK7 windows, 1" for entrance / exit and 2" side windows for collection. 1/4" Swagelok for pump out/ gas input. Viton O-rings. 1/4-20 thread for stand.
